Introduction

The SegmentStream HTTP Tracking API lets you record analytics data from any website or application. The requests hit our servers, and we route your data to any destination you want!

We have a native JavaScript SDK which is built for high-performance client-side tracking and is open-source. But sometimes you may want to send to the HTTP API directly—that’s what this reference is for.

Headers

Authorizing

Each request must be authorized with an API Token.

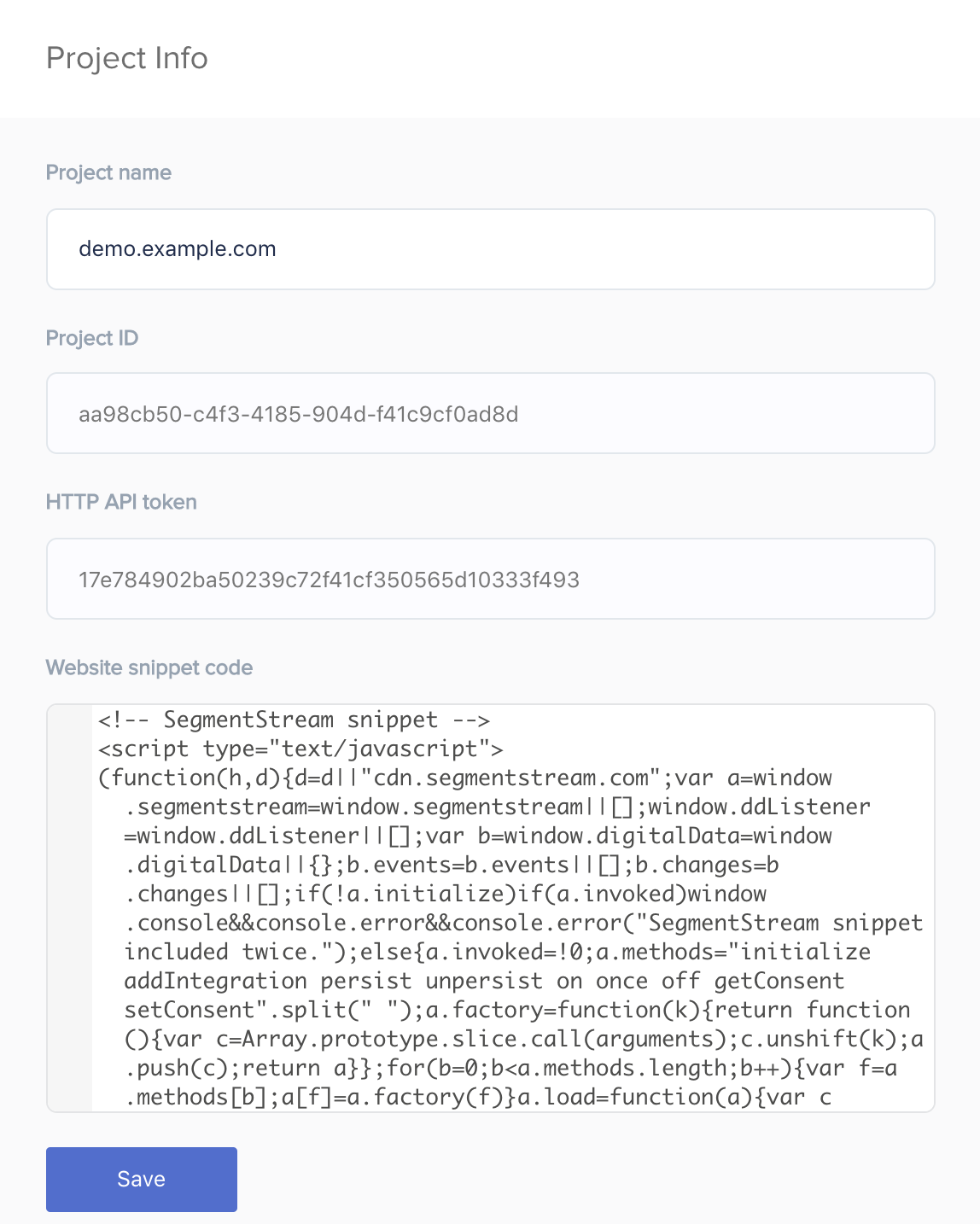

Each project’s API token can be found in the Project Info menu in the admin panel:

Authentication uses HTTP Basic Auth, which involves a ‘username:password’ that is base64 encoded and prepended with the string ‘Basic ‘.

In practice that means taking a provided API Token,'abc123' as the username, adding a colon, and then the password field is left empty. After base64 encoding 'abc123:' becomes 'YWJjMTIzOg=='; and this is passed in the authorization header like so:

'Authorization: Basic YWJjMTIzOg=='.

Content Type

In order to send data to our HTTP API, a content-type header must be set to 'application/json'.

Errors

We currently return a 204 response for all successful API requests. 401 if incorrect API Token is used or 400 if the request is too large or JSON is invalid.

Rate limit

There is no hard limit on request for API.

Max Request Size

Max request size is 64kb per call.

Tracking Events

To get started, we recommend tracking just a few important events. You can always add more later!

Example track call:

POST https://track.segmentstream.com/track

{
  "hitId": "4c59d330-35c7-11e9-8f27-8d1d7d4690e7",
  "sentAt": "2019-02-21T10:56:10.723Z",
  "event": {
    "category": "Auth",
    "name": "Registered",
    "label": "some label",
    "user": {
      "anonymousId": "80ddb140-35c6-11e9-bd56-eb1c05e6de18",
      "emailHash": "eff8c37862c7a2f0019448289bdd0869c30ae7f07060e4be9d",
      "userId": "u2783187492",
      "firstName": "John",
      "lastName": "Doe"
    },
    "nonInteraction": false
  },
  "context": {
    "ip": "123.22.334.55"
  }
}

Event properties can be anything you want to record. In this case, category, name, label, user and nontInteraction.

The JSON payload call has the following fields:

Key	Data type	Description
user.anonymousId (optional/required)	STRING	A pseudo-unique substitute for a User ID, for cases when you don’t have an absolutely unique identifier. A userId or an anonymousId is required.
user.userId (optional/required)	STRING	Unique identifier for the user in your database, a userId or an anonymousId is required.
hitId (optional)	STRING	The unique ID of the request. Used for deduplication.
sentAt (required)	DATE	Timestamp when the message itself took place, defaulted to the current time by the Segment Tracking API. It is a ISO-8601 date string, If the event just happened, leave it out and we’ll use the server’s time. If you’re importing data from the past, make sure you to provide a timestamp.
context (optional)	OBJECT	Dictionary of extra information that provides useful context about a message, but is not directly related to the API call like ip address or locale. See the Context field docs for more detail
event (required)	OBJECT	Action that a user has performed. Free-form dictionary of properties of the event, like name, label, user, product, etc. You can find proper fields for each event type
integrations (optional)	OBJECT	Dictionary of different integrations and specific options for this integration. See more details in the description of each integration.

Other body

This document was last updated on May 21, 2019. If you notice any gaps, outdated information or simply want to leave some feedback to help us improve our documentation, please let us know!
